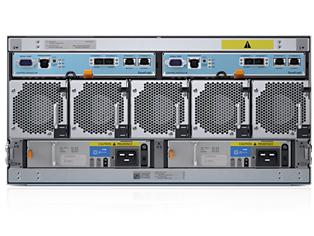

Dell Storage PS6610 Series
Dell Storage PS6610 Series Ürününün Özellikleri ve Detayları
Genel Özellikler
Teknik Spesifikasyonlar
Markalar ve Modeller
Genel Özellikler
Storage Controller
Dual controllers with 32GB non-volatile memory per controller
Network Interfaces
Management network: One 100BASE-TX dedicated management per controller
Interface ports: Two 10GBASE-T with RJ45 and two 10GbE SFP+ for fibre or twin-ax copper cabling
Snapshots
512 per volume / up to 10,000 total per group
Volume connections per PS series group
Up to 1024 per pool / 4,096 per group
Host Protocol
Any standards-compliant iSCSI initiator
Operating systems and hypervisors
Microsoft® Windows Server® including Hyper-V®
VMware® ESX Server™
Red Hat® Enterprise Linux® (RHEL)
SUSE® Enterprise Linux® (SLES)
Oracle® Linux
Citrix® XenServer®
For a complete list of supported OS versions including software initiators, NICs/CNAs, and HBAs, please see the Dell Storage Compatibility Matrix: http://en.community.dell.com/dell-groups/dtcmedia/m/mediagallery/20438558.
TCP Network Support
IPv4, IPv6 compliant. USGv6 certified.
Expansion Option
Can be combined with other PS Series arrays in the same SAN group, online. Up to 16 total arrays per group. Additionally, PS and SC Series offer common management and cross-platform replication capabilities between arrays, providing PS Series customers the flexibility to add SC Series arrays to their environment, if and when they choose.1
Reliability
Redundant hot-swappable controllers
Hot-swappable disks and power supplies
Unified storage
Adding an FS7600 or FS7610 NAS appliance to PS Series group enables both block and file storage from a single storage solution.
Enclosure Monitoring System
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface1

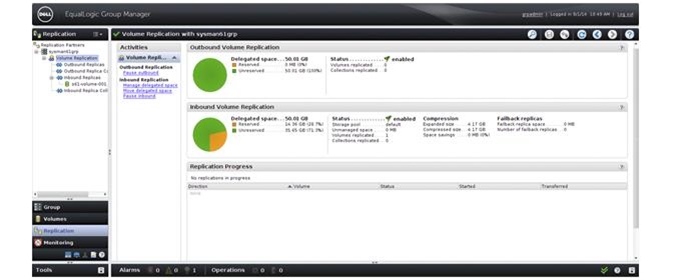

PS Series Group Manager
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support
Security
CHAP authentication
Access control for iSCSI
Access control for management interfaces including Active Directory, LDAP, or RADIUS support
Notification Methods
SAN Headquarters alerting including Dell SupportAssist, SNMP traps, email, syslog
Power
Dual 2800W, 200-240VAC, 50/60Hz (high AC line power source only)
Environmental Operating Conditions
Temperature range: 10 to 35°C / 50 to 95°F
Storage temperature: -40 to 65°C / -40 to 149°F
Altitude: maximum altitude of 12,000m (39,370ft)
Inlet type: 0 to 3,048m (0 to 10,000ft)
NOTE: Up to 35°C / 95°F maximum temperature is reduced by 1°C/300m (1°F/547ft) above 950m (3,117ft)
Operating relative humidity: 10% to 80% (noncondensing) with 29°C (84.2°F) maximum dew point
Non-operating relative humidity: 5% to 95% (noncondensing) with 33°C (91°F) maximum dew point
Operational shock: 5g 10ms ½ sine operational –done for XYZ axis
Non-operational shock: 20g 10ms ½ sine, for X and Y axis
Non-operational shock: 30g 10ms ½ sine for Z axis only
Vibration: Random 21grms @ 5-500Hz operational / Random 1.04grms 2-200Hz non-operational
Acoustics: LwA 8.0Bels
Air Quality: Airborne contaminant level of G2 or lower as defined by ISA-S71.04-1985
Physical
Height: 5U / 22.23cm (8.8in)
Width: 48.26cm (19in)
Depth: 91.44cm (36in)
Weight: 130.7kg (287.5lb) (max config)
Dell support and optional storage service offerings
Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support are recommended to provide you the right support services for your PS Series solution. Contact your Dell representative today for more information.
Teknik Spesifikasyonlar
High-performing, ultra-dense arraysThe Dell Storage PS6610 arrays combine next-generation powerful controllers and an updated dense storage architecture to meet large data repository requirements. PS and SC Series latest software releases offer common management and cross-platform replication, allowing you to leverage existing investments while taking advantage of new functionality.2
The PS6610 can scale out to over 8PB in a group of 16 arrays with improved density, memory and performance than the previous generation.
- Provides up to 7x greater performance in a hybrid configuration than previous generation arrays3
- Supports over half a petabyte in a single array and up to 3.5x4 greater capacity than the previous generation
- Offers space savings with 2.8x5 more density per U than the previous generation
- Advanced software optimizes disk space and simplifies managementManage day-to-day tasks, replicate volumes and initiate migration from PS Series to SC Series arrays with the latest software releases, which include Dell Storage Manager (DSM).6 Dell Storage PS Series Software automatically virtualizes and optimizes storage resources while providing advanced data protection and SAN management. The full PS Series software suite includes:
- Cooperation with host operating systems, hypervisors and applications
- Microsoft®, VMware® and Linux® product integration
- Storage resource automation, case creation and tracking through SAN HQ management software and Dell SupportAssist
- Support for block and file data along with Dell FS Series NAS through a single intuitive interface
- Compression of snapshots and replicas up to 50 percent to optimize disk space7
- Flexible, high-capacity options
- Dual controllers, each with 32GB non-volatile cache
- Two 10GBASE-T RJ45 auto-sensing (10Gb/1Gb/100Mb) ports including auto-negotiation from 1Gb to 10Gb
- Two 10GbE SFP+ ports for fibre or copper cabling
- Up to 42 or 84 hot-pluggable drives, including SAS, NL-SAS, SSD and SED
- Model options for 2.5" drives and 3.5" drives
- Up to 504TB capacity per array
- Enhance the value of your data centerDell Storage PS Series customers achieved up to a 513 percent return on investment in 6.2 months on average.8The PS6610 Series arrays offer low TCO through a family of solutions that can be tailored to fit your exact needs and grow with you simply and cost effectively with:
- All-inclusive software functionality
- No forklift upgrades
- Multigenerational compatibility that allows mix-and-match arrays to build tiered storage
- Seamless rollout or retirement of arrays
- Long-term investment protection with PS Series and SC Series coexistence2
