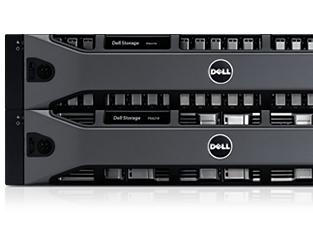

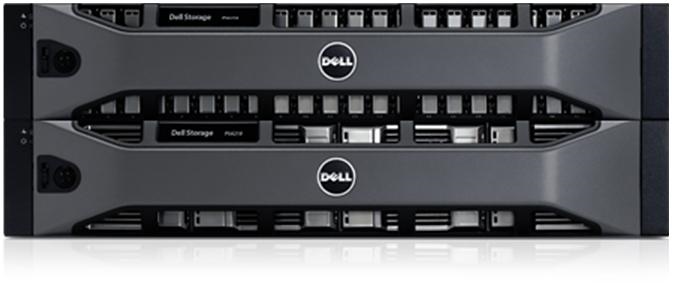

Dell Storage PS4210 Series

Dell Storage PS4210 Series Ürününün Özellikleri ve Detayları

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Storage Controller

Dual controllers with 16GB non-volatile memory (8GB per controller)with up to 32GB non-volatile memory in a group of 2 arrays

Network Interfaces

Management network: One 100BASE-TX per controller; 10GbE connectivity

Interface ports

Two 10GBASE-T with RJ45 or 2 x 10GbE SFP+ for fibre or twin-ax copper cabling

Snapshots

128 per volume / up to 2,048 total per group

Volume connections per PS series group

Up to 512 per pool / 1024 per group

Host Protocol

Any standards-compliant iSCSI initiator

Operating systems and hypervisors

Microsoft® Windows Server® including Hyper-V®
VMware® ESX Server
Red Hat® Enterprise Linux® (RHEL)
SUSE® Enterprise Linux® (SLES)
Oracle® Linux
Citrix® XenServer®

For a complete list of supported OS versions including software initiators, NICs/CNAs, and HBAs, please see the Dell Storage Compatibility Matrix: http://en.community.dell.com/dell-groups/dtcmedia/m/mediagallery/20438558.

TCP Network Support

IPv4, IPv6 compliant. USGv6 certified.

Expansion option

Can be combined with other PS Series arrays in the same SAN group, online with a maximum of 16 total arrays per group that can support up to 2 PS4xxx arrays and 14 PS6xxx arrays. A maximum of two arrays can be in a group of PS4xxx series with up to 144TB. Additionally, PS and SC Series offer common management and cross-platform replication capabilities between arrays, providing PS Series customers the flexibility to add SC Series arrays to their environment, if and when they choose.2

Reliability

Redundant hot-swappable controllers with vertical port sharing
Hot-swappable disks and power supplies

Enclosure Monitoring System

CHAP authentication; Access control lists for iSCSI as well as Access Control Policies; Access control for management interfaces including Active Directory, LDAP, or RADIUS support

Management Interfaces

Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface2

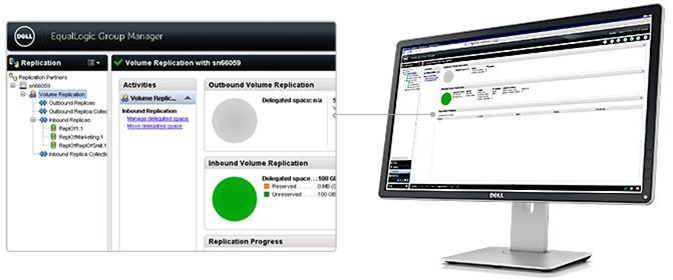

PS Series Group Manager
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support

Security

CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support

Notification Methods

SNMP traps, email, syslog

Power

AC voltage: 100-240 VAC +10% single phase
700W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W
Frequency: 50/60 Hz
Power factor: 0.98 (minimum)
Power supplies: Dual 700W

Environmental Operating Conditions

Temperature range: 5° to 40°C (41° to 104°F)
Storage temperature: –40° to 65°C (–40° to 149°F)
Altitude: For altitudes above 2950 feet, the maximum operating temperature is derated 1ºF/550 ft.
Operating Relative humidity: 20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour
Operational shock: Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
Operating Vibration: 0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
Acoustics Category 4: <=7.2 bels at 23C +/- 2C
Air Quality: Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985

Physical

Height: 2U/8.68 cm (3.41 in)
Width: 44.63 cm (17.57 in)
Depth: 59.4 cm (23.4 in)
Weight: 29.2 Kg (64.4 lb)

Dell support and optional storage service offerings

Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support are recommended to provide you the right support services for your PS Series solution. Contact your Dell representative today for more information.

Teknik Spesifikasyonlar

Optimized performance and connectivity

The Dell Storage PS4210 10GbE iSCSI arrays increase performance and connectivity options for small- to mid-sized businesses. With the latest software releases, PS and SC Series offer common management and cross-platform replication capabilities between arrays, allowing you to take advantage of new functionality while leveraging existing investments.3 As part of the PS Series line, the Dell Storage PS4210 arrays provide tight integration in common application environments while offering:

Better performance—up to six times the performance with new hybrid-flash arrays compared to previous generation arrays4
Dual 10GbE ports, twice as many ports as the previous generation
Support for server and desktop virtualization

Simplified management

Manage day-to-day tasks, replicate volumes and initiate migration from PS Series to SC Series arrays with the latest software releases, which include Dell Storage Manager (DSM).5 Dell Storage PS Series Array Software enables sound strategies for data protection, storage management, virtualization and optimization for the Dell Storage PS4210 arrays. The easy-to-use PS Series software includes:

PS Series Host Software to extend the functionality of the array-based software and enable cooperation with host operating systems, hypervisors and applications
Host Integration Tools for Microsoft®, VMware® and Linux® products
SAN HQ management software with an interface for monitoring groups of PS Series arrays to ensure storage resources are utilized for maximum benefit and integrated into Dell Services with SupportAssist
Support for block and file data along with FS Series network attached storage (NAS)
Economical and flexibleDell Storage PS4210 Series includes four models that retain the simplicity and reliability of the EqualLogic PS Series product line but are right-sized and priced for small to medium businesses. The PS4210XS hybrid-flash array enables high performance and HDD capacity in a single array by automatically tiering hot data to SSDs and colder data to HDDs. The hybrid array is ideal for mission-critical workloads such as VDI and OLTP deployments.
The full line of PS4210 Array Series brings 10GbE iSCSI SAN speed and efficiency to real-world applications, featuring:
- Dual controllers, each with 8GB6 non-volatile cache (twice as much memory as the previous version)
- Two 10GBASE-T RJ45 auto-sensing (10Gb/1Gb/100Mb) ports, allowing auto negotiation from 1Gb to 10Gb to make your environment easier to manage
- Two 10GbE SFP+ ports for fiber or copper cabling
- Up to 24 hot-pluggable drives, including SAS, NL-SAS and SSD
- Model options for 2.5" drives and 3.5" drives
- Up to 72TB capacity per array
- Enhances the value of your data center
  Dell Storage PS Series storage customers achieved up to a 513 percent ROI and earned back their investment in 6.2 months on average7. What’s more, the PS4210 Series arrays can be tailored to fit your exact needs, and grow with you, simply and cost effectively, with:
  - All-inclusive software functionality
  - No-forklift upgrades
  - Multigenerational compatibility that allows mix-and-match arrays to build tiered storage
  - Seamless rollout or retirement of arrays
  - Long-term investment protection with PS Series and SC Series coexistence3
