Genel Özellikler

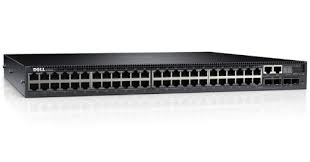

Dell Networking N1500 is a series of energy-efficient, cost-effective 1GbE switches designed to extend enterprise features to small and mid-sized businesses. N1500 switches utilize a Layer 3 Lite feature set and offer high-availability for smaller managed networks.

Teknik Spesifikasyonlar

The following applies to all N1500 series models:

Standard Traffic-Port Attributes

Integrated 10GbE SFP+ dedicated ports (beyond standard ports): 4

Integrated GbE SFP combo ports: Not Available

Integrated GbE 10/100/1000BASE-T RJ45 combo ports: Not Available

Integrated 40GbE QSFP+ dedicated ports: Not Available

Modular Traffic-Port Attributes

Hot swappable expansion module bay: Not Available

Module support for 10GbE: Not Available

Module support for 40GbE: Not Available

Support for 40GbE to 4x 10GbE breakout: Not Available

Traffic-Port Features

Auto-negotiation for speed and flow control: Standard

Auto MDI/MDIX: Standard

Port mirroring: Standard

Flow-based port mirroring: Standard

Broadcast storm control: Standard

Energy Efficient Ethernet per port settings: Standard

Port Profile support including Admin profiles: Standard

Management- & Configuration-Port Attributes

1 RJ45 console/management port with RS232 signaling: Standard

1 Out-of-Band (OOB) Management Port (10/100/1000BASE-T): Not Available

1 USB (Type A) port for configuration: Standard

Stacking Attributes

Integrated rear mini-SAS stacking ports: Not Available

User port stacking: Y

Maximum stacking distance (meters): 100

Maximum stacking speed (full-duplex): 40Gbps

Switch Attributes

Line-rate Layer 2 switching: Standard

Line-rate Layer 3 routing: Standard

CPU Memory: 1GB

Flash Memory: 256MB

Packet Buffer Memory: 1.5MB

Dual firmware images on-board: Standard

Temperature sensors for environmental monitoring: Standard

Cable diagnostics: Standard

Optical transceiver (SFP/SFP+) diagnostics: Standard

Switch auditing support: Standard

UDLD: Standard

Chassis

Rack Height: 1U

Rack-mounting kit: Y

ReadyRails™ rack mounting system, no tools required: Not Available

Power & Cooling Hardware

Internal hot swappable power supply bays: Not Available

Hot swappable power supplies (included): Not Available

Integrated power supply (not removable): Standard

External power supply: Option Available

Power supply redundancy: Option Available

Removable fans): Not Available

Redundant fans: Standard

Variable speed fans: Standard

Air flow: IO to PSU (Normal)

Environmental Operating Conditions

Operating Temperature in Celsius: 0° to 45° C

Operating Temperature in Fahrenheit: 32° to 113° F

Storage Temperature in Celsius: -40° to 65° C

Storage Temperature in Fahrenheit: -40° to 149° F

Operating Relative Humidity: 95%

Storage Relative Humidity: 85%

Power Supply Efficiency: 80% or better in all operating modes

Optional Features

Modules (optional)

2-port 10 Gigabit BASE-T RJ45 hot swappable uplink module: Not Available

2-port 10 Gigabit SFP+ hot swappable uplink module: Not Available

4-port 10 Gigabit BASE-T RJ45 hot swappable module: Not Available

4-port 10 Gigabit SFP+ hot swappable module: Not Available

2-port 40 Gigabit QSFP+ hot swappable module: Not Available

Power Supplies (optional)

200w, hot swappable, with V-Lock, adds redundancy to non-PoE switches: Not Available

715w, hot swappable, adds redundancy or to power all PoE+ ports fully: Not Available

1100w, hot swappable, adds redundancy or to power all PoE+ ports fully: Not Available
