Dell EqualLogic FS7610 Unified Storage Solution

Dell EqualLogic FS7610 Unified Storage Solution Ürününün Özellikleri ve Detayları

ÖZEL FİYAT TEKLİFİ ALIN

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Product Configurations

Storage arrays supported
New or existing Dell Storage PS arrays with version 8.1 firmware or greater
Capacity and bandwidth expansion
Up to 509TB usable file capacity in a single name space. One or two FS7610 appliances in a NAS cluster.
Two Intel 10GbE dual-port NICs per controller. 10GbE can be either SFP+ or Base-T standards, and accommodate both copper and optical connectivity.
Client connectivity over Ethernet, SAN connectivity over iSCSI Ethernet switch is required; direct connect to the SAN is not supported.
NAS appliance
Each NAS appliance has a pair of controllers in an active-active configuration, using cache mirroring and an integrated backup power supply. Each controller contains 24GB auto-adaptive R/W RAM- based cache and two quad core Intel® processors.
Management
PS Series Group Manager graphic user interface (GUI), command line interface (CLI)

Data Protection features
Dual controller active-active NAS appliance, redirect-on-write, user recoverable snapshots, point-in-time replication, NAS container cloning, NDMP backup, antivirus, battery-based BPS, access based enumeration
Memory size
Each controller has 24GB of memory (48GB per appliance) and its own backup battery that provides power sufficient to de-stage cache contents to a non-volatile internal storage device in the event of a power failure.
Protocol support
Server Message Block (SMB) 3.0, Network Files System (NFS) v4.1, iSCSI, Network Data Management Protocol (NDMP) 4, Active Directory, Lightweight Directory Access Protocol (LDAP), NIS (Network Information Service (NIS), Network Time Protocol (NTP), Simple Network Time Protocol (SNTP), Simple Network Management Protocol (SNMP), Address Resolution Protocol (ARP), Link Aggregation (IEEE 802.3ad), Adaptive Load Balancing (ALB)
Multi-client subnet support
Configure multiple client networks and VLANs to present NFS exports or CIFS shares
User authentication
For SMB clients: Kerberos v5 and NTLM v2 on Microsoft Active Directory Server; for NFS v4 clients: Kerberos 5 on AD and SASL support for encryption, NFS v4 Access Control Lists
Certified Backup Software
Dell NetVault Backup 8.6x and 9.0x, Symantec BackupExec 2010 R3 and 2012, Symantec NetBackup 7.0 or later, CommVault Simpana 9.0 or later, IBM Tivoli Storage Manager 6.3
Qualified antivirus software
Symantec ScanEngine 5.2 , Symantec Protection Engine 7.0, McAfee Virus Scan Enterprise 8.8 and Enterprise for Storage 1.0.2; Sophos Endpoint Security and Control 10.0; TrendMicro InterScan Web Security Suite 3.1
Directory Services
Microsoft Active Directory Domain Services, LDAP and NIS
Windows Features
LDAP Signing, SMB Signing, Roaming Profiles, Hidden Shares, Access Based Share Enumeration
Technical Highlights
- Deduplication and compression
  Policy-driven variable-block deduplication and LZPS compression, Deduped data can be rehydrated on read
  Thin provisioning
  Space can be over-allocated based on customer needs for more efficient capacity planning.
  Client network connectivity
  4 x 10Gb SFP+ or Base-T Ethernet
  Storage Area Network connectivity
  4 x 10Gb SFP+ or Base-T Ethernet
  Direct connect to the SAN is not supported.
  Min NAS Cluster size
  512GB for a single appliance; 1024GB for a two appliance cluster
  Max NAS Cluster size
  509TB
  Min/max NAS container size
  20MB/509TB
  Max files in a cluster
  64 billion per appliance
  Max NAS Containers
  1024
  Max file size
  10 TB
  Max file name length
  255 bytes
  Maximum number of directories in a cluster
  64 billion
  Maximum directory depth
  512
  Max NFS mounts
  1024 (one or two FS7610 appliances)
  Max CIFS shares
  1024 (one or two FS7610 appliances)
  Max concurrent CIFS connections
  10,000 per NAS appliance, 20,000 for a two appliance cluster
  Max Quota rules per NAS Container (user quotas)
  1000 per NAS container
  Max Quota rules per cluster (user quotas)
  1000 per NAS cluster
  Max local users in a NAS cluster
  100
  Max local groups in a NAS cluster
  100
  Snapshots
  Redirect-on-write snapshots
  Max snapshots per NAS container/cluster
  1024/10,000
  Maximum containers enabled for replication in a NAS cluster
  100
  Max simultaneous replicated containers
  10
  Max schedules per NAS cluster
  512
  Backup
  Backups using NDMP v4
  Antivirus
  3rd Party anti-virus applications are supported via ICAP
  Chassis
  - Chassis Physical Specifications (per dual controller appliance)

    Height
    2U / 86.4 mm (3.4 inches)

    Width
    481.50 mm (18.96 inch) with rack flange.
    446.3 mm (17.6 inches)—Does not include rack flange.

    Depth
    741.0 mm (29.2 inches)—Without bezel and handle
    813.0 mm (32.0 inches)—With bezel and handle

    Weight (Maximum configuration)
    30.5 kg (67 lbs)

    Rack Support
    ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
  - Power
    Wattage
    717W output per appliance

    Voltage
    90 V AC to 264V AC, autoranging, 47 Hz/63 Hz. Note: This system is also designed to be connected to IT power systems with a phase to phase voltage not exceeding 230 V.

    Heat dissipation
    2446 BTU/hr. Note: The heat dissipation is calculated using the power supply wattage rating. The heat dissipation values are for the entire system which includes (chassis and two controllers).

    Maximum inrush current
    Under typical line conditions and over the entire system ambient operating range, the inrush current may reach 55 A per power supply for 10 ms or less

Environmental Operating Conditions

Temperature

Continuous operation
5 °C to 40 °C (41 °F to 104 °F) with a maximum temperature gradation of 20 °C per hour.

Storage:
-40 °C to -60°C (–40 °F to 140 °F) with a maximum temperature gradation of 20 °C per hour.

Relative humidity

Operating:
20% to 80% (non-condensing) with maximum humidity gradation of 10% per hour at maximum wet bulb temperature of 29 °C (89 °F)

Non-operating:
5% to 95% with a maximum humidity gradation of 10% per hour at a maximum wet bulb temperature of 38 °C (100 °F)

Maximum vibration

Operating:
0.26 Grms (5 Hz – 350 Hz @ 0.0002G2/Hz) in operational orientation for 5 minutes (maximum)

Non-operating:
1.88 Grms with the following PSD profile (all 6 sides tested for 15 minutes each side)

Frequency (Hz) G2/Hz
10 0.13
20 0.13
70 0.004
130 0.004
165 0.0018
500 0.0018

Maximum shock

Operating
31G half-sine shock +/-5% with pulse duration of 2.6ms +/- 10% in the operational orientation (Maximum)

Non-operating
Square wave shock of 27 G, at 235 inches/second (596.90 cm/second) velocity change (all six sides tested)

Operating altitude

-16 to 3048 m (-50 to 10,000 feet)
For altitudes above 2950 feet, the maximum operating temperature is derated 1° F/550 feet.

Non-operating
–15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne Contaminant Level Class
G1 as defined by ISA-S71.04-1985

Teknik Spesifikasyonlar

Optimized platform for high-speed storage and low TCO

The next-generation Dell Fluid File System version 4 (FluidFS v4), with the enterprise-class FS7610, scales performance and capacity on the fly. Get more performance and lower TCO along with:

Linear performance expansion up to 494,000 max SPECsfs file OPS and 11.9 GB/sec max throughput1
Improved performance with mirrored cache and automated load balancing, even as you add more data
Lower costs with one of the most competitive price per performance scale-out NAS solutions available
Manage growth intelligently
Manage your storage growth with the flexibility to scale both performance and capacity independently without disruption.
- Seamlessly incorporate with existing or new Dell Storage PS Series arrays andeliminate forklift upgrades.
- Expand block and file storage capacitywithin a single namespace up to 509TB2with a storage backend of PS arrays.
- Improve scalability, performance and security with expanded protocol support including SMB 3.03, NFS v4 ACLs and NFS v4.1.
- Easily increase performance by adding a second FS7610 appliance.
Intuitively manage block and file operationswith PS Series Group Manager or CLI.
Protect data with enterprise-class features
FluidFS also protects your data through:
- File-level, user-restorable snapshots.
- Asynchronous, file system-level, snapshot-based replication to peer FS7610 systems.
- Full replication of the entire file system, including shares, exports and permissions, to help ease data recovery following a disaster.
- Common Internet File System (CIFS) anti-virus support through any ICAP AV server and certified partner software.
- Network Data Management Protocol (NDMP) for backup and disaster recovery.
- Create an integrated and dependable network
  Bring fully integrated, end-to-end unified storage to your PS Series storage system with the FS7610 NAS appliance. This solution works with PS Series arrays to deliver the core benefits of the PS Series platform, including peer scaling, ease-of-use features and all-inclusive software licensing. The EqualLogic FS Series features:

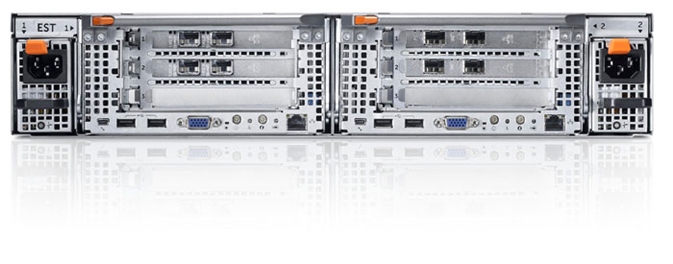

  - 2U dedicated NAS platform with two highly available active-active controllers and a PCIe backplane for intercontroller communication.
  - Four 10GbE ports for SAN connectivity and four ports for the client network.
  For dependability day after and day, the EqualLogic FS7610 NAS appliance includes:
  - Active/active clustering and cache mirroring for controller pairs.
  - Integrated backup power supply to protect cached data in case of controller failure.
  - Fully redundant and hot swappablecontrollers, power supplies and fans.
  - Automatic controller failover.
  - Checksums and failsafe journaling to protect file metadata.
